MODEL NO

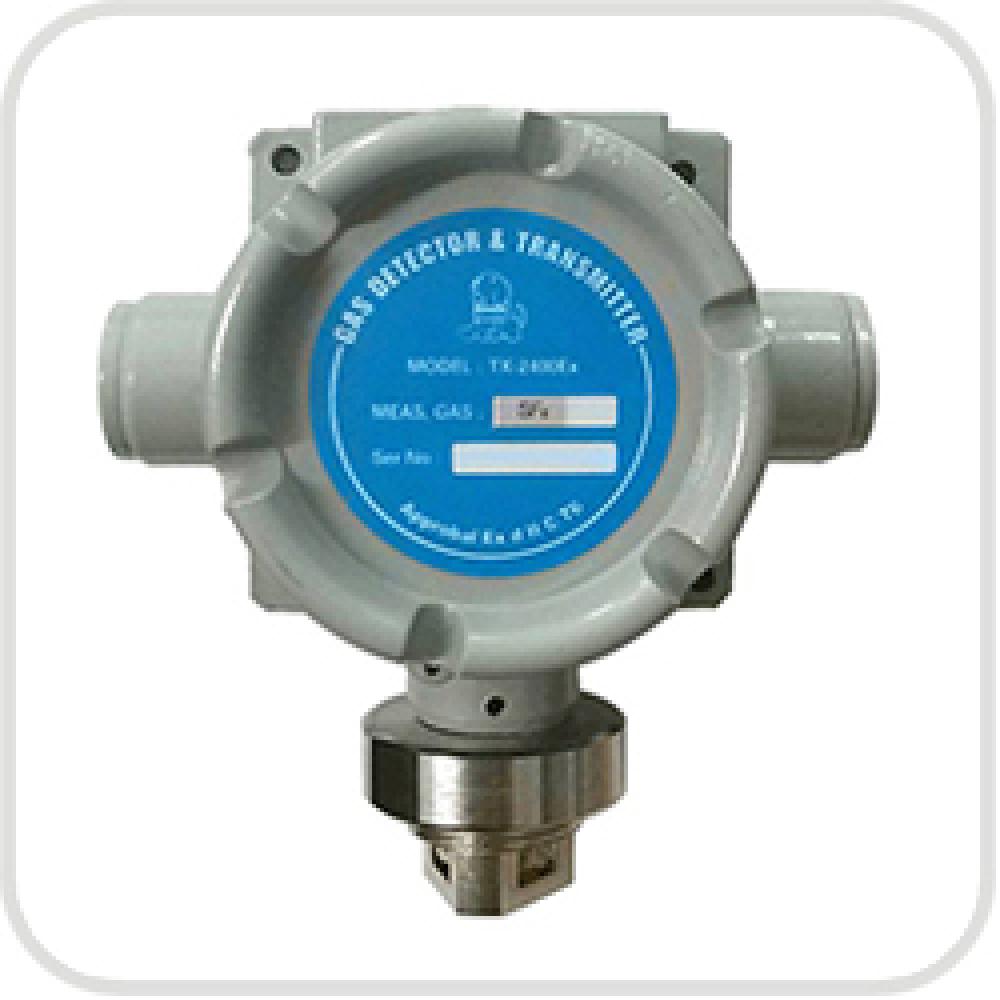

TX-2400Ex

Measuring gas

Oxygen, Toxic , Flammable gases

Measuring Method

Electro-chemical ,  Catalytic , NDIR Sensor,

Measuring Type

Air diffusion type ( Diffusion Type )

Measuring Range

% LEL, % VOL, ppm, ppb (Standard Model)

ETC (Refer to Ordering Information)

Accuracy

± 3%

Operating Tem'p

-20℃ ~ +50℃ (Standard Model ) toxicity and flammability

-40℃ ~ +65℃ ( Option Model ) ) toxicity and flammability

-10℃ ~ +250℃ ( Option Model ) flammability

Operating Humidity

5 to 95% RH ( Non-Condensing )

Output Signal

4 to 20mA DC / Full Scale

Power Supply

DC 18 - 31V ( Free Voltage )

Signal Cable

CVVS or CVVSB 1.25 SQ X 3 Wires

Telemetering Line

Within 2.5Km

Dimensions

144mm(W) X 158mm(H) X 89mm(D)

Weight

1.3Kg

Housing Material

Cast Aluminum

Explosion Proof

Ex d∥ C T6 ( KTL )

Conduit Opening

1/2” or 3/4" PF NPT ( 3/4”  PF Standard Specifications )

Installation Method

Wall Mount,  Duct Mount,  2“ Pole Mount Station
